One week of Salt: frustrations and reflections.



Reflecting on Salt. (Credit: Psyberartist, CC-BY 2.0)

Salt, or SaltStack, is an automatic deployment tool for clusters of machines, in the same category as Chef, Puppet and Ansible. I’ve previously used Chef, found the experience frustrating, and thought I’d give Salt a go. The task: converting my tilemill-server bash scripts, which set up a complete TileMill server stack, with OpenStreetMap data, Nginx and a couple of other goodies.

The goals in this kind of automation for me are threefold:

  1. So I can quickly build new servers for Mapmaking for Academics workshops.
  2. So I can manage other, similar (but slightly different) servers, such as cycletour.org and gis.researchmaps.net. “Manage” here means documenting and controlling the slight configuration differences, being able to roll out further changes (such as web passwords) without having to log in.
  3. So other people can do this too. (That is, the solution has to be simple enough to explain that other people can do it).

The product of my labours: https://github.com/stevage/saltymill

Disclaimers and apologies

A week is too soon to feel the real benefits of automatic deployment and configuration management, but plenty long enough for frustrations and annoyances. There are lots of good things about Salt, but those will go in another post.

I’ve intentionally written this post as I go, to document things that are surprising, counter-intuitive or bothersome to the newcomer. Once you become familiar with a system, it’s much harder to remember what it was like as a newbie, and easier to make allowances for it. So experienced Salt users will probably rankle at the wilful ignorance displayed herein.

A few things I quickly appreciated, compared to Chef:

  • Two parties, not three. Chef has the client (your laptop), the Chef Server (which I never used because it was too complicated) and the target machine itself. Salt doesn’t have the client, so you do everything either on the master (“salt ‘*’ state.highstate) or on the target machine in masterless mode (“salt-call –local state.highstate)
  • No need for “knife upload”: the Salt Master just looks for your files in /srv/salt, so you can use any method you like for getting them there. I always hated having to upload recipes, environments etc individually – you always forgot something.
  • YAML rather than Ruby.
  • A nifty command line tool that lets you try states out on the fly, or run commands remotely on several servers at once. (Chef’s shell, formerly ‘shef’, never really worked out for me.)

Mediocre documentation

Automatic deployment systems are complicated, and you’d love some clear mental concepts to hang on to. Unfortunately, Salt’s chosen metaphor is pretty clumsy (salt grains, pillars, mines…meh), and they’re not well explained. Apparently the concept of a “state” is pretty important to Salt, but even after reading much documentation and quite a reasonable amount of hacking away, I still have only the vaguest notion of what a Salt state is. What’s a “high state”? A “low state”? How can I query the “state” of a minion? No idea. It’s hard to tell if “states” are an implementation magic that makes the whole thing work, or if I, the user am supposed to know about them.

(After more digging around, I think “state” has several meanings, of which one is just one of the actions defined in a SLS file.)

And then, strangely, how do you refer to the most important objects that you work with, the actual code that specifies what you want done? “SLS files”. Or “state files”. Or “SLS[es]”. Or “Salt States”. Or “Salt state files”. Those terms are all used in the docs. (I thought they were also called “formulas“, but those are apparently only pre-canned state files.)

YAML headaches

It turns out YAML has some weird indenting and formatting rules that occasionally ruin your day. Initially it’s especially tedious having to learn this extra language and its subtleties (> vs |, multi-line hyphenated lists versus single line square-bracketed lists) when you just want to get started – it steepens the learning curve.

IDs, names

The behaviour of statement IDs is cute at first, but not well explained, and becomes pretty tiresome. The idea is you can write this:

httpd:
  pkg.installed

Succinct, huh? That’s actually shorthand for this:

install_apache_please:
  pkg:
    - name: httpd
    - installed

That is, the “id” (httpd) is also the default value for “name”. Secondly, you can compress one item of the following list  (“installed”) onto the function name (“pkg”) with a dot.

So far, so good. But it quickly leads to this kind of silliness:

"{{ pillar.installdir}}/myfile.txt":
  file.managed:
    - unless: ...
another_command:
cmd.wait: - watch: [ "{{ pillar.installdir}}/myfile.txt" ]

Free-text strings don’t make great IDs. On the whole, I’d prefer a syntax which is robustly readable and predictable, rather than one which is very succinct in special cases, but mostly less so.

The next problem is that all those IDs have to be unique across all your .sls files. That’s tedious when you have repetitious little actions that you can’t be bothered naming properly.

Another annoyance is that Salt’s data structure sometimes requires lists, and sometimes requires dicts, and it’s hard to remember which is which. For example:

finishlog:
  cmd.run:
    - name: |
        echo "All done! Enjoy your new server.<br/>" >> /var/log/salt/buildlog.html
  file.managed:
    - name: /var/log/salt/index.html
    - source: salt://initindex.html
    - template: jinja
    - context:
       buildtitle: "Your server is ready!"
       buildsubtitle: "Get in there and make something."
       buildtitlecolor: "hsl(130,70%,70%)"

Notice how the first level of indentation doesn’t have hyphens, the second level does, then the third level doesn’t? I’m not sure what the philosophy is here – it looks to me like each level is just a list of key/value pairs.

Jinja templating logic

Jinja is a fantastic templating language. But Salt uses this template language as its core programming logic. That’s like writing a C program using macros all over the place. It’s sort of ok as a way to access data values:

update_data:
 cmd.run:
 - cwd: {{ pillar['tm_dir'] }}

Here, the {{ … }} bit is a Jinja substitution, so the actual YAML code that gets parsed and executed looks like this:

update_data:
 cmd.run:
 - cwd: /mnt/saltymill

As most people who have dealt with macro preprocessors know, they rapidly get complex and very hard to debug. The error you see is a YAML parse error, but is the problem in your YAML code, or in what got substituted by Jinja?

It’s certainly possible to use the full range of Jinja functions (that is, {% … %} territory) inside Salt formulas, but for sanity I’m trying to avoid it. On the flip side, certain things that I expected to be easy, like defining a variable in a state {% set foo = blah %} and then being able to access it from inside any other template, turn out to not work. You need to explicitly pass context variables around, or import state files, and it becomes quite cumbersome.

Help may be at hand.  Evan Borgstrom also noticed that “simple readability of YAML starts to get lost in the noise of the Jinja syntax” and is working on a new, pure Python syntax called NaCl.

Many ordering options

There are about 4 competing systems simultaneously operating to determine which order actions get executed in, ranked here from most important to least important.

  1. Requisite order: The “preferred”, declarative system, where if X requires Y and Z requires X, then Salt just figures out that Y has to happen first.
  2. Explicit order: you can set an “order flag” on an action, like “order: 1” or “order: last”. Basically, if you’re tearing your hair out with desperation, I think. (I tried it once, and it seemed to have no effect.)
  3. Definition order: things happen in the order they’re declared in. (By far my preferred option). This doesn’t always seem to work, in the top.sls, for reasons I don’t understand.
  4. Lexicographical order (yes, really): actions are executed in alphabetical order of their state name. (Apparently this was a good thing because at least it was consistent across platforms.)

The requisite ordering system sounds good, but in practice it has two shortcomings:

  1. Repetitiveness: let’s say you have psql 10 commands that all strictly depend on Postgresql being installed. It’s very repetitive to state that dependency explicitly, and much more efficient to simply install Postgresql at the top of the formula, and assume its existence thereafter.
  2. Scope: Requiring actions in other files seems to prevent the running of just this file. That is, if in load_db.sls you do “require: [ cmd: install_postgres ]”, then this command line no longer works: salt ‘*’ state.sls load_db

I’m yet to see any advantages to a declarative style. I like the certainty of knowing that a given sequence of steps works. The declarative model implies that one day the steps might be rearranged based only on my statement of what the dependencies are.

Arbitrary rules

There’s a rule that says you can’t have the same kind of state multiple times in a statement. This is invalid:

/var/log/salt/buildlog.html:
 file.managed:
 - source: salt://initlog.html
 file.append:
 - text: Commencing build...

Why? I don’t know. The rules dictate that you have to do this:

/var/log/salt/buildlog.html:
 file.managed:
 - source: salt://initlog.html

append_to_that_file:
 file.append:
 - name: /var/log/salt/buildlog.html
 - text: Commencing build...

Notice the cascade of consequences as this fragile “readability” tower crashes down:

  1. You can’t have two states of the same type in a statement, so we move the second state to a new statement; but:
  2. You can’t have two statements with the same ID, so we give the second statement a new ID; meaning:
  3. We now have to explicitly define the “name” of the file.append function.

Clumsy bootstrapping

I miss Chef’s elegant “knife bootstrap” though. In one command line command, Chef:

  1. Defines properties about the node, like its environment and role.
  2. Connects to the node
  3. Installs Chef
  4. Registers the node with the Chef server, or your client, or both.
  5. Starts a deployment, as required.

With Salt, these all seem to be manual steps:

  1. I SSH to the node
  2. I download and install Salt (using one-liner bootstrap script)
  3. I write ‘grains’ to the newly created /etc/salt/grains file (yes, I think I’m doing this wrong – roles should be defined through pillars maybe)
  4. The node then attempts to register itself with the Salt Master, but because the connection is insecure:
  5. I have to go to the Salt Master and accept the pending key: yes | salt-key -A [and the docs suggest you’re supposed to manually verify the keys!]
  6. Now I can launch a deployment: salt-master <nodename> state.highstate

When I rebuild a server, the above are preceded by these steps:

  1. Log in to OpenStack Dashboard, click ‘rebuild’ on the instance.
  2. Edit my ~/.ssh/known_hosts to remove the old SSH key.
  3. On the Salt Master, delete the old key: yes | salt-key <node> -d

There are probably ways of streamlining this process. I hope so, anyway, because it’s pretty clumsy. I don’t know yet whether the SaltMaster can automatically launch deployments when new nodes register.

A pattern for multi-instrument data harvesting with MyTardis

Here’s a formula for setting up a multi-instrument MyTardis installation. It describes one particular pattern, which has been implemented at RMIT’s Microscopy and Microanalysis Facility (RMMF), and is being implemented at Swinburne. For brevity, the many variations on this pattern are not discussed, and gross simplifications are made.

This architecture is not optimal for your situation. Maybe a documented a suboptimal architecture is more useful than an undocumented optimal one.

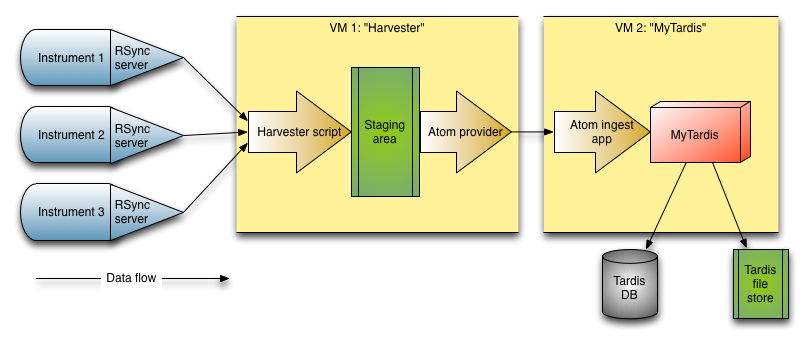

The goal

The components:

  • RSync server running on each instrument machine. (On Windows, use DeltaCopy.)
  • Harvester script which collates data from the RSync servers to a staging area.
  • Atom provider which serves the data in the staging area as an Atom feed.
  • MyTardis, which uses the Atom Ingest app to pull data from the Atom feed. It saves data to the MyTardis store and metadata to the MyTardis database.

Preparation

Things you need to find out:

  1. List of instruments you’ll be harvesting from. Typically there’s a point of diminishing returns: 10 instruments in total, of which 3 get most of the use, and numbers #9 and #10 are running DOS and are more trouble than they’re worth.
  2. For each instrument: what data format(s) are produced? Some “instruments” have several distinct sensors or detectors: a scanning electron microscope (producing .tif images) with add-on EDAX detector (producing .spt files), for instance. If there is no MyTardis filter for the given data format(s), then MyTardis will store the files without extracting any metadata, making them opaque to the user.

    Details collected for each instrument at RMIT’s microscopy facility.

  3. Discuss with the users how MyTardis’s concept of “dataset” and “experiment” will apply to the files they produce. If possible, arrange for them to save files into a file structure which makes this clear: /User_data/user123/experiment14/dataset16/file1.tif . Map the terms “dataset” and “experiment” as appropriate: perhaps “session” and “project”.
  4. Networking. Each instrument needs to be reachable on at least one port from the harvester.
  5. You’ll need a staging area. Somewhere big, and readily accessible.
  6. You’ll eventually need a permanent MyTardis store. Somewhere big, and backed up. (The Chef cookbooks actually assume storage inside the VM, at present.)
  7. You’ll eventually need a production-level MyTardis database. It may get very large if you have a lot of metadata (eg, Synchrotron data). (The Chef cookbooks install Postgres locally.)

RSync Server

We assume each PC is currently operating in “stand-alone” mode (users save data to a local hard disk) but is reachable by network. If your users have authenticated access to network storage, you’ll do something a bit different.

Install an Rsync server on each PC. For Windows machines, use DeltaCopy. It’s free. Estimate 5 minutes per machine. Make it auto-start, running in the background, all the time, serving up the user  data directory on a given port.

Harvester script

The harvester script collates data from these different servers into the staging area. The end result is a directory with this kind of structure:

user_123
        TiO2
            2012-03-14 exp1
                run1.tif
                run2.tif
                edax.spc
            2012-03-15 exp1
                anotherrun.tif
                highmag.tif
user_456
...

You will need to customise the scripts for your installation.

  1. Create  a staging area directory somewhere. Probably it will be network storage mounted by NFS or something.
  2. sudo mkdir /opt/harvester
  3. Create a user to run the scripts, “harvester”. Harvested data will end up being owned by this user. Make sure that works for you.
  4. sudo chown harvester /opt/harvester
  5. sudo -su harvester bash
  6. git clone https://github.com/VeRSI-Australia/RMIT-MicroTardis-Harvest
  7. Review the scripts, understand what they do, make changes as appropriate.
  8. Create a Cron job to run the harvester at frequent intervals. For example:
    */5 * * * * /usr/local/microtardis/harvest/harvest.sh >/dev/null 2>&1
  9. Test.

Atom provider

My boldest assumption yet: you will use a dedicated VM simply to serve an Atom feed from the staging area.

Since you already know how to use Chef, use the Chef Cookbook for the Atom Dataset Provider to provision this VM from scratch in one hit.

  1. git clone https://github.com/stevage/atom-provider-chef
  2. Modify cookbooks/atom-dataset-provider/files/default/feed.atom as appropriate. See the documentation at https://github.com/stevage/atom-dataset-provider.
  3. Modify environments/dev.rb and environments/prod.rb as appropriate.
  4. Upload it all to your Chef server:
    knife cookbook upload –all
    knife environment from file environments/*
    knife role from file roles/*
  5. Bootstrap your VM. It works first try.

MyTardis

You’re doing great. Now let’s install MyTardis. You’ll need another VM for that. Your local ITS department can probably deliver one of those in a couple of hours, 6 months tops. If possible (ie, if no requirement to host data on-site), use the Nectar Research Cloud.

You’ll use Chef again.

  1. git clone https://github.com/mytardis/mytardis-chef
  2. Follow the instructions there.
  3. Or, follow the instructions here: Getting started with Chef on the NeCTAR Research Cloud.
  4. Currently, you need to manually configure the Atom harvester to harvest from your provider. Instructions for that are on Github.

MyTardis is now running. For extra credit, you will want to:

  • Develop or customise filters to extract useful metadata.
  • Add features that your particular researchers would find helpful. (On-the-fly CSV generation from binary spectrum files was a killer feature for some of our users.)
  • Extend harvesting to further instruments, and more kinds of data.
  • Integrate this system into the local research data management framework. Chat to your friendly local librarian. Ponder issues like how long to keep data, how to back it up, and what to do when users leave the institution.
  • Integrate into authentication systems: your local LDAP, or perhaps the AAF.
  • Find more sources of metadata: booking systems, grant applications, research management systems…

Discussion

After developing this pattern for RMMF, it seems useful to apply it again. And if we (VeRSI, RMIT’s Ian Thomas, Monash’s Steve Androulakis, etc) can do it, perhaps you’ll find it useful too. I was inspired by Peter Sefton’s UWS blog post Connecting Data Capture applications to Research Data Catalogues/Registries/Stores (which raises the idea of design patterns for research data harvesting).

Some good things about this pattern:

  • It’s pretty flexible. Using separate components means individual parts can be substituted out. Perhaps you have another way of producing an Atom feed. Or maybe users save their data directly to a network share, eliminating the need for the harvester scripts.
  • By using simple network transfers (eg, HTTP), it suits a range of possible network architectures (eg, internal staging area, but MyTardis on the cloud; or everything on one VM…)
  • Work can be divided up: one party can work on harvesting from the instruments, while another configures MyTardis.
  • You can archive the staging area directly if you want a raw copy of all data, especially during the testing phase.

Some bad things:

  • It’s probably a bit too complicated – perhaps one day there will be a MyTardis ingest from RSync servers directly.
  • Since the Atom provider is written in NodeJS, it means another set of technologies to become familiar with for troubleshooting.
  • There are lots of places where things can go wrong, and there is no monitoring layer (eg, Nagios).

Getting started with Chef on the NeCTAR Research Cloud

Opscode Chef is a powerful tool for automating the configuration of new servers, and indeed, entire clouds, multi-server architectures etc. We now use it to deploy MyTardis. It’s quite daunting at first, so here’s a quick guide to the setup I use. You’ll probably need to refer to more complete tutorials to cover gaps (eg  OpsCode’s Fast Start Guide, the MyTardis chef documentation and this random other one.) We’ll use installing MyTardis as the goal.

  1. Sign up to Hosted Chef. That gives you a place where Chef cookbooks, environments, roles etc will live.
  2. Install Chef (client) locally.
  3. Get the MyTardis Chef cookbook:
    cd ~/mytardis
    git clone https://github.com/mytardis/mytardis-chef
  4. Make a directory, say ~/chef, and download the “…-validator.pem” and knife.rb files that Opscode gives you to there. The knife.rb file contains settings for Knife, like directories. Modify it so it points to ~/mytardis/mytardis-chef. Mine looks like this
    current_dir = File.dirname(__FILE__)
    log_level :info
    log_location STDOUT
    node_name "stevage"
    client_key "#{current_dir}/stevage.pem"
    validation_client_name "versi-validator"
    validation_key "#{current_dir}/versi-validator.pem"
    chef_server_url "https://api.opscode.com/organizations/versi"
    cache_type 'BasicFile'
    cache_options( :path => "#{ENV['HOME']}/.chef/checksums" )
    cookbook_path ["#{current_dir}/../mytardis/mytardis-chef/site-cookbooks", "#{current_dir}/../mytardis/mytardis-chef/cookbooks"]
  5. You now need to upload these cookbooks and assorted stuff to Chef Server. This part of Chef is really dumb. (Why isn’t there a single command to do this – or why can’t knife automatically synchronise either a local directory tree or git repo with the Chef server. Why is one command ‘upload’ and another ‘from file’…? Why are cookbooks looked for in the ‘cookbooks path’ but roles are sought under ./roles/?)
    knife cookbook upload -a
    knife role from file ../mytardis/mytardis-chef/roles/mytardis.json
  6. Get a NeCTAR Research Cloud VM. Launch an instance of “Ubuntu 12.04 LTS (Precise) amd64 UEC”. Call it “mytardisdemo”, give it your NeCTAR public key, and do what you have to (security groups…) to open port 80.
  7. Download your NeCTAR private key to your ~/chef directory.
  8. Now, to make your life a bit easier, here are three scripts that I’ve made to simplify working with Knife:bootstrap.sh:
    #!/bin/bash -x
    # Bootstraps Chef on the remote host, then runs its runlist.
    source ./settings$1.sh
    knife bootstrap $CHEF_IP -x $CHEF_ACCOUNT --no-host-key-verify -i nectar.pem --sudo $CHEF_BOOTSTRAP_ARGS

    update.sh:

    #!/bin/bash -x
    # Runs Chef-client on the remote host, to run the latest version of any applicable cookbooks.
    source settingsi$1.sh
    knife ssh name:$NECTAR_HOST -a ipaddress -x $NECTAR_ACCOUNT -i nectar.pem -o "VerifyHostKeyDNS no" "sudo chef-client"

    connect.sh:

    #!/bin/bash -x
    # Opens an SSH session to the remote host.
    source ./settings$1.sh
    ssh $CHEF_ACCOUNT@$CHEF_IP -i nectar.pem -o "VerifyHostKeyDNS no"

    (We disable host key checking because otherwise SSH baulks every time you allocate a new VM with an IP that it’s seen before.)With these, you can have several “settings…sh” files, each one describing a different remote host. (Or just a single settings.sh). So, create a “settings-mytardisdemo.sh” file, like this:

    # Settings for Ubuntu Precise NeCTAR VM running mytardis as a demo
    export CHEF_HOST=mytardisdemo
    export CHEF_IP=115.146.94.53
    export CHEF_ACCOUNT=ubuntu
    export CHEF_BOOTSTRAP_ARGS="-d ubuntu12.04-gems -r 'role[mytardis]'"
  9. Now you have it all in place: A chef server with the cookbook you’re going to run, a server to run it on, and the local tools to do it with. So, bootstrap your instance:
    ./bootstrap.sh -mytardisdemo

    If all goes well (it won’t), that will churn away for 40 minutes or so, then MyTardis will be up and running.

  10. If you change a cookbook or something (don’t forget to re-upload) and want to run chef again:
    ./update.sh -mytardisdemo
  11. And to SSH into your box:
    ./connect.sh -mytardisdemo
