You might not need PostGIS: streamlined vector tile processing for big map visualisations

I recently re-engineered the data processing behind OpenTrees.org. It’s a website that lets you explore the combined open tree databases of 21 local councils around Australia (over 800,000!), with some pretty data visualisations. Working on this site has taught me a lot about processing data into vector tiles. Today’s lesson: “You might not need PostGIS”.

Screenshot 2018-05-15 11.19.19.png

Trees from Melbourne, Hobson’s Bay and Brimbank.

First version: Tilemill, PostGIS, PGRestAPI

The architecture of v1 looked like this: (See “OpenTrees.org: how to aggregate 373,000 trees from 9 open data sources“).

  • Configuration file in JSON stores the location of each source file.
  • Bash scripts using JQ (yes, really) to run wget, ogr2ogr and psql to fetch, convert and load each datafile into PostGIS.
  • SQL scripts to merge and clean the datasets together into a single schema.
  • Tilemill to generate raster tiles from the data.
  • PGRestAPI to provide a queryable interface to the data (particularly to allow the map to zoom to a particular tree by ID).
  • Nginx serving the front end, built with Mapbox.js (a wrapper around Leaflet).
  • The magic of UTFGrid allows interrogating individual tree points. (I still love this technology.)

It worked fairly well, but with the huge disadvantage of having to host a web-accessible server, complete with database.

Second version: Mapbox-GL-JS, vector tiles, static hosting

When I lost access to my free hosting, I re-architected it using Mapbox-GL-JS: v2.

  • Same scripts to fetch and process data into PostGIS.
  • More scripts which export data out of PostGIS and call Tippecanoe to generate vector tiles, which I then upload to Mapbox.com.
  • No Tilemill
  • Brand new front-end built using Mapbox-GL-JS, with some clever new data visualisation, such as visualising by “rarity”.
  • No PGRestAPI. Clicking on a tree updates the URL to include its lat/long, so you have a shareable link that will go to that tree.
  • Front end hosted on Github Pages.

Now we don’t need a server (Github Pages and Mapbox are serving everything we need, and are free). But we still have the heavy dependency of PostGIS.

Do we really need PostGIS?

What is PostGIS actually doing in this scenario? Mostly it’s doing very simple row-oriented, non-relational operations like:

Screenshot 2018-05-15 10.35.52.png

or:

Screenshot 2018-05-15 10.36.24.png

(Yes, I should have used SPLIT_PART())

And then finally we just dump the whole table out to disk.

I began trying to replace it with Spatialite, but that didn’t seem to play very nicely with NodeJS for me. As soon as it got fiddly, the benefits of using it over Postgres began to disappear.

And why did I even need it? Mostly because I already had scripts in SQL and just didn’t want to rewrite them.

So, the disadvantages of PostGIS here:

  • It’s a big, heavy dependency which discourages any other contributors.
  • The data processing scripts have to be in SQL, which introduces a second language (alongside Javascript).
  • No easy way to generate newline-delimited GeoJSON (which would make generating vector tiles a bit faster.)

Third version: NodeJS, Mapbox

So, I rewrote it as v3:

  • Replaced the Bash scripts with NodeJS. Which means, instead of the nonsense of JQ, we have sensible looking Javascript for which the JSON config files work well.
  • Instead of loading Shapefiles into PostGIS, I convert everything into GeoJSON.
  • Instead of SQL “merge” scripts, a NodeJS script processes each tree then writes them all out as a single, line-delimited GeoJSON file.
  • Tippecanoe then operates on that file to generate vector tiles, which I upload to Mapbox.
  • Split the repository in two: one for the data processing (“opentrees-data“), and a separate one for the front end (“opentrees“). This seems to be a good pattern.

The workflow now looks like:

  1. 1-gettrees.js uses a configuration file to fetch datasets from predefined locations and save them, in whatever formats, in a standard place.
  2. 2-loadtrees.js converts each of these files into a geojson file using OGR2OGR.
  3. 3-processFiles.js loads each of these, processing all the individual trees into a standard schema, then writes out a single combined line-delimited GeoJSON.
  4. 4-vectorTiles.sh uses Tippecanoe to generate an mbtiles from the GeoJSON.

The processing scripts now look like:

Screenshot 2018-05-15 10.06.04.png

Screenshot 2018-05-15 10.07.11

For now, each GeoJSON file is loaded entirely in one synchronous load operation.

Screenshot 2018-05-15 10.41.32

(Processing all the GeoJSONs this way takes about 55 seconds on my machine. Loading them asynchronously reduces that to about 45. Most of the time is probably in the regular expressions.)

The only slight hurdle is generating the species count table. With PostGIS, this is just one more query run after all the others:

Screenshot 2018-05-15 10.23.15.png

In NodeJS, our “process each tree once” workflow can’t support this. After processing them once (counting species as we go), we process them all again to attach the species count attribute.

Screenshot 2018-05-15 10.19.27

If we were doing a lot of statistics, possibly PostGIS would start to look attractive again.

Do we really need OGR2OGR?

The next dependency I would like to remove is OGR2OGR. It is there because datasets arrive in formats I can’t control (primarily CSV, Shapefile, GeoJSON). I love using Mike Bostock’s shapefile library, but it doesn’t currently support projections other than EPSG:4326. That’s not a showstopper, just more work.

It would also be great not to have to maintain VRT files (in XML!) to describe the CSV formats in which data arrives.



Advertisements

OpenStreetMap vector tiles: mixing and matching engines, schemas and styles

For my next web mapping project, we’ll use vector tiles. Great. And the data will come from OpenStreetMap. Excellent. Now you only have five more questions to answer.

For the front-end web application developer who wants to stick a map in their site, vector tiles open up lots of options and flexibility, but also lots of choices.

  • Display engine: which JavaScript library is going to actually draw stuff in the browser?
  • Style: how will you tell the display engine what colour to draw each thing in the schema?
  • Data schema: what kinds of data are contained in the tiles, what are the layers called, and what are the attributes available?
  • Tile transport: how will the engine know where to get each tile from?
  • File format: how is the data translated into bytes to store within a tile file?

We’re very lucky that in a couple of these areas, a single standard dominates:

Which leaves three decisions to make.

Display engine

There are several viable options for displaying your vector tiles, depending on whether you also want to display raster tiles or need creative styling, if WebGL (IE11+ only) is ok, and what else you need to integrate with.

Screenshot 2017-08-22 23.26.11.png

Mapbox Terrain, a style rendered with Mapbox-GL-JS.

  • Mapbox-GL-JS: the industry leader, made by Mapbox, uses webGL, focused on the needs of mass-market maps for large web companies. It has excellent documentation, great examples and very active development.
  • Tangram: made by Mapzen, also uses WebGL, has more experimental and creative features like custom shaders.
  • OpenLayers: a fully-featured, truly open source mapping library primarily built for raster tiles, but with vector tile support. (Disclaimer: I’ve never used OpenLayers, I’m just reading docs here.)

There are other combinations as well, such as Leaflet.VectorGrid.

Style

The style mechanism tends to be closely tied to the display engine. (That was also true of CartoCSS, which was a pre-processor for Mapnik. RIP).

  • Mapbox Style Specification is a single JSON file which defines sources (vector tiles, GeoJSON files, raster tiles etc) and their display as layers (circles, fills, lines, text, icons etc), including properties that depend on zoom and/or data values. It also has some fiddly details for displaying custom fonts and symbols. Supported by Mapbox-GL-JS and Mapbox.js, but no third-party front-end libraries that I’m aware of. (Geoserver, a Java-based web application seems to have support.) Styles can be created with Mapbox Studio, Maputnik (free, open source) or by hand.
  • OpenLayers style is a JSON object for OpenLayers. It doesn’t seem to exist as a file format per se. (I’m not sure why the demo above just uses a ton of JavaScript statements rather than this style object.)
  • Tangram scene file, a YAML format which covers a bit more than just styling data, such as cameras and lighting.

Schema

Finally, there are three distinct, well-defined schemas for packaging OpenStreetMap data into vector tiles. There doesn’t seem to be a formal specification for how you define a schema, so each is presented as documentation: a list of layers, each with a list of attributes (and their possible values), and at which zoom levels they appear.

  • Mapbox Streets v7 (22 layers): a highly processed version of OpenStreetMap data optimised for simplicity and performance, geared towards general mapping applications. Layer and attribute names often reflect original OSM tag names (“waterway, class=stream”) but not slavishly (“road, class=link”, “road,

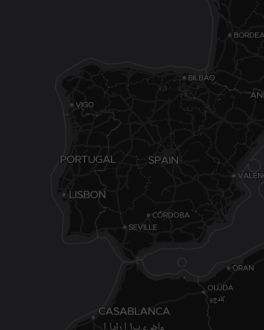

    Dark Matter (OpenMapTiles)

    Dark Matter, a Mapbox Style for OpenMapTiles.

    class=major_rail”).

  • OpenMapTiles (15 layers): an open schema developed by Klokan (a Swiss company) “in cooperation with the Wikimedia foundation”. It is a bit looser with layer names (“transportation, class=minor”) and occasionally quirky (“transportation, brunnel=tunnel”)
  • Mapzen (9 layers): includes both simplified “kind=” and original OSM “kind_detail=” tags on almost every object,  making them heavier than the alternatives. Somewhat confusingly, all waterway/water features are combined into a single layer and distinguished only by geometry (line or polygon). At lower zooms, data is sourced from Natural Earth, instead of OSM – I don’t know why. (A lot of work goes into these decisions!)

Matching schemas and styles

Now, the style needs to be designed for the schema: if the schema contains a layer called “roads”, your style can’t be expecting a layer called “transportation”. But it also needs to be expressed in the right format supported by the engine: don’t go feeding no YAML to Mapbox-GL-JS.

For instance:

  • Mapbox Basic uses the Mapbox Streets schema, and is expressed in the Mapbox

    Tron, a highly stylised style from Mapzen for Tangram.

    Style Specification. And hence can be rendered by Mapbox-GL-JS, or OpenLayers. (Other standard Mapbox styles include Mapbox Streets, Mapbox Terrain and Mapbox Dark)

  • Cinnabar uses the Mapzen schema, and is expressed as a Tangram scene file. (Other Mapzen styles include Bubble Wrap, Tron, Zinc, Walkabout and Refill).
  • Klokantech Basic uses the OpenMapTiles schema, and is expressed in Mapbox-GL-JS. (Other OpenMapTiles styles include Positron, Dark Matter, OSM Bright, Toner and Fjord Color).

These styles kind of live within their company affiliations, however. How about styles rendered by one company’s engine, using data from a different schema:

  • Tilezen uses Mapzen’s schema, but is rendered with Mapbox-GL-JS. Demo. (There are also Mapzen examples for OpenLayers and D3). This token effort by Mapbox achieves the same thing.
  • This example uses OpenMapTiles, rendered using Tangram.

Mixing and matching

Which brings us to the point of this post. How do you mix schemas and styles? That is, how do you take a style you designed for Mapbox Streets, and make it work on OpenMapTiles? Or port one of Mapzen’s kooky open-licensed styles so it works with Mapbox Streets? Well, you can’t – yet.

(Adapting a style from one engine to another, like what ol-mapbox-style does, is a tough ask, because engines’ capabilities differ.)

But adapting a Mapbox Style file from one OpenStreetMap schema to another? That seems totally doable – even if there isn’t yet a tool to make that happen.

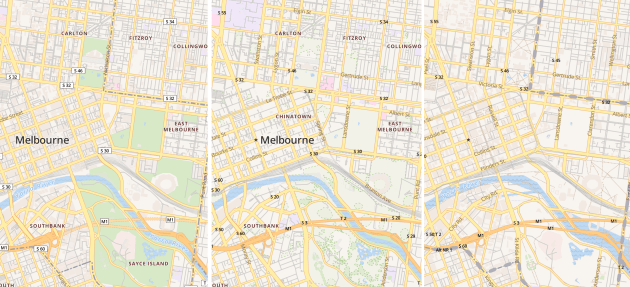

My quick little proof of concept in NodeJS converted OpenMapTiles’ “OSM Bright” style (left) to versions for Mapbox Streets (centre) and Mapzen (right).

Screenshot 2017-08-17 21.52.54

Want to give me a hand? Get in touch!
